●General Information

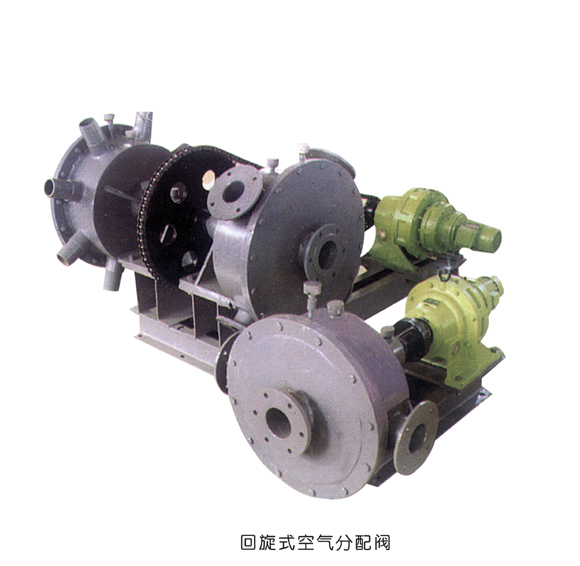

The rotary air distributor distributes air from the blower to each air outlet by the rotating valve core quantitatively and regularly. Then the air will convey to the homogenizing zone (with aerating box) and homogenize the powdery material circularly.
●Technical Parameters
Type Name | QFFΦ500mm Single 4 Nozzles | QFFΦ500mm Single 8 Nozzles | QFFΦ500mm Double 6 Nozzles | QFFΦ500mm 4 or 8 Nozzles | |
Size | 2160×950×820 | 1600×1700×910 | 2006×2165×1100 | 1630×1700×9100 | |
Speed Reducer Motor | Cycloidal Pin Gear Speed Reducer BWEY2715－1505 | Cycloidal Pin Gear Speed Reducer BWEY2715－1505 | Cycloidal Pin Gear Speed Reducer XWEY－106 | Cycloidal Pin Gear Speed Reducer BWEY2715－1505 | |
Chain Drive | Z1＝17,Z2＝68 | Z1＝17,Z2＝68 | Z1＝19,Z2＝66 | Z1＝17,Z2＝68 | |
Distributor Valve | 4 Nozzles | 8 Nozzles | 6 Nozzles | 4 Nozzles | 8 Nozzles |
Air Inlet Diameter（Φ mm） | 100 | 100 | 150 | 100 | 100 |
Air outlet Diameter（Φ mm） | 100 | 80 | 125 | 100 | 80 |
Blowing Rate（m3/min） | 10 | 4 | 8.5 | 10 | 4 |
Air Pressure（MPa） | 0.07 | 0.04 | 0.07 | 0.04 | |
Speed of Valve core（r/min） | 0.25 | 0.25 | 0.288 | 0.25 | |
Max Pressure（Mpa） | 0.1 | 0.1 | 0.1 | 0.1 | |
Device could be chosen | Φ8 m, Φ10 m Raw Material Homogenizing Silo | Φ8m, Φ10 m Cement and Raw Material Homogenizing Silo | Φ15 m, Φ18 m Cement Homogenizing Silo | Φ8 m, Φ10 m Mixed Raw Material Homogenizing Silo | |
