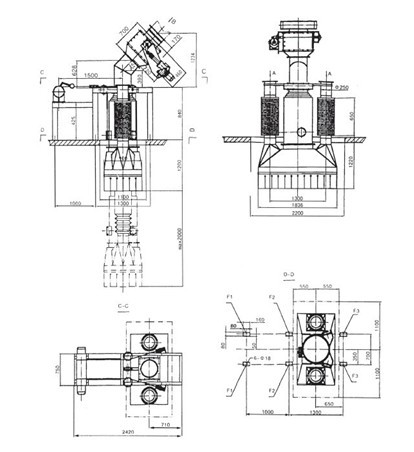

●Equipment Foundation and Embedded Part Load
1. Lift Device: Fv=5KN×1.5 FH=20KN×2
2. Flange of the feeding hole: Fv=50KN
3. The foundation of bulk head: Fv=4×10KN×15
Note:
The four column angles are all: 10KN×1.5(coefficient)
FV: Force of vertical or vertical load FH: Force of horizon or horizontal load
●Main Technical Parameters:
1. Max discharge ability: 200-300t/h
2. Max granularity of material: <50 mm
3. Max temperature of material: <150℃
4. The dust air discharge value: 4500m3/h
5. Equipment Weight: 3000Kg
