Clinker Cement Bulk Loader

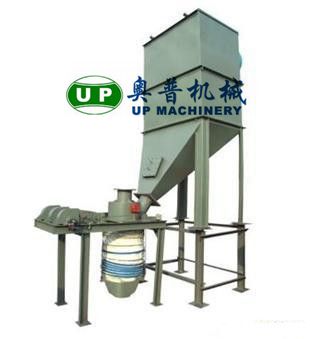

SSQ300 Clinker Bulk Loading System






General Information
Clinker bulk loading system is equipment which automatic convey the clinker to the clinker bulk ship or car. The bottom cement clinker bulk mainly consists of manual bar gate, electric fan-shaped valve, winding device, flexible discharge device, dust collect soft pipe, capacitance limit switch, electric control system, etc.
Technical Parameters

Note: This series equipment made of different materials which could satisfy different material temperature and granularity requirements.
Work Principle
When the convey machine at the feeding position, open same bar number of bar valve. Push the down button of control cabinet, the discharge head will cut off the elevator's power. Push the Load button the equipment will start discharging, auxiliary corollary equipment will start working. The dust from discharging will pass the hopper and is collected by flex dust collect pipe to the dust collector. When the discharge head is full of material ,the head will lifting up and warning, The lifting distance should be set before, for example, if you lift up 1 meter ,the time replay should be adjusted to T=1/V. The material is keep loading during the head lifting up. When discharge is full, it will follow the step above again. The material is full, please push the stop button, the electric vibration machine will brake, or shut the fan-shaped valve to stop discharging. After stop, please push the lifting button makes some distance between hopper and the transport machine then the transport machine could move out and the other one could move in, repeat this process till the whole material storage silo is fulfilled.
