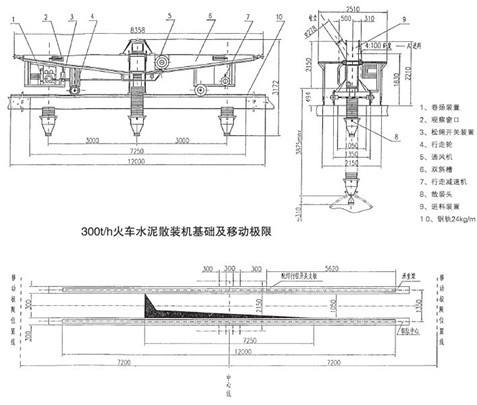

●Reference List
No. | Name |
1 | Winch Device |
2 | Observe Window |
3 | Switch Device for Loosing Rope |
4 | Wheel for Walking |
5 | Ventilator |
6 | Double Slide Conveyor |
7 | Walking Speed Reducer |
8 | Bulk Head |
9 | Material Feeding Device |
10 | Steel Rail 24 Kg/m |
1. The max discharge ability is 300t/h.
2. Max lift distance of bulk head is 2500 mm and max move distance is 6000 mm.
3. Motor power of winch is 2.2KW, Voltage is 380V.
4. Motor power for walking is 1.5KW, Voltage is 380V.
5. Vibrating Motor Power of bulk head is 0.06KW, Voltage is 220V.
6. Power of ventilator is 2.2KW, Voltage is 380V.
7. Dust collector should be equipped by customer and the air quantity about 4200 m3/h.
8. Placing order for electric cabinet, we can design it according the control system.
●Instruction
1. Entire Equipment do not include the steel rail. Please provide and fix it for yourself.
2. The Steel rail should be in the same plane and the altitude difference should ≤1mm, the joint of rail's altitude difference should ≤1mm.
3. The steel rail's center distance should be 1350±1.5.
4. There should weld a travel switch support plate (LXK3-20S-T) at 5620mm from the end of steel rail as the limit of move.
