ZSQ-150Ⅱbulk loader is side silo installation, and applicable to bulk car, train or ship loading.It is composed of side silo discharging valve, air slide and ZSQ－150I bulk loader and has the whole functions of ZSQ－150I bulk loader.ZSQ-150Ⅱbulk loader has two types according to the layout requirements: straight-through and non-straight-through.
Main technical parameters:
Loading capacity: 60-150 t/h (based on technological requirements),lifting and falling distance of Loading orifice: 0.8m-2.8m power: 5 kw total weighs :900-1400 kg (excluding roots fan or compressor)

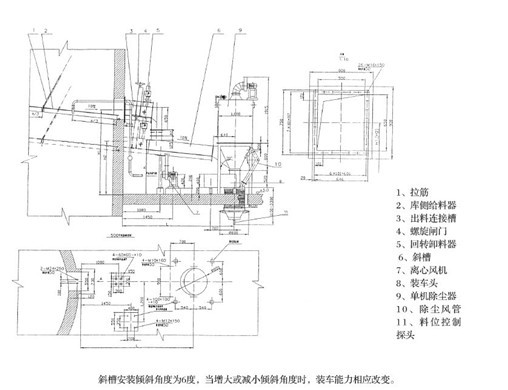

●Reference List
No. | Name |
1 | tie piece |
2 | side material feeding Conveyor |
3 | screw gate |
4 | rotary discharger |
5 | slide Conveyor |
6 | centrifugal fan |
7 | bulk head |
8 | stand-alone dust collector |
9 | dust collector air hose |
10 | dust collection pipe |
11 | material level control probe |
●Technical Parameters
L | 2985 | 3480 | 3380 | 4475 | 4975 | 5475 |
H | 1410 | 1460 | 1515 | 1565 | 1620 | 1670 |
E | 260 | 315 | 365 | 395 | 470 | 520 |
C | 2000 | 2500 | 3000 | 3500 | 4000 | 4500 |
