●General Information
Air Slide Conveyor is widely used in conveying of dry powdery materials pneumatic conveying equipment. In cement industry is commonly used to deliver cement and raw powder. Slide conveyor without rotatable parts in conveying material so it is easy to maintenance, good sealing, no noise, safe and reliable operation. It is widely used for less power consumption, easy to change transport direction, multipoint feeding and multipoint discharge. Slide conveyor's main component is the cell body and air permeable layer. This series product adopt PET5-6 type (polyester) synthetic fabrics as air permeable layer, this is a new type of air permeable material which is thermo stability (150 ℃), corrosion resistance, wear and tear resistance, low moisture absorption, light weight, smooth appearance, long service life, etc.
●Technical Parameters
1. Convey material: moisture content≤1%, temperature≤150℃ dry powder.
2. Convey ability: cement and raw material conveying ability as follow:
Type | XZ200 | XZ250 | XZ315 | XZ400 | XZ500 | XZ630 | XZ800 | |||
Delivery Ability | Width of Cell Body | mm | 200 | 250 | 315 | 400 | 500 | 630 | 800 | |
α=4° | Cement | t/h | 22 | 40 | 70 | 130 | 220 | 320 | 400 | |
Raw Material | 16 | 30 | 55 | 100 | 165 | 245 | 310 | |||
α=6° | Cement | 40 | 65 | 120 | 250 | 400 | 610 | 765 | ||
Raw Material | 30 | 55 | 90 | 185 | 300 | 455 | 565 | |||
α=8° | Cement | 50 | 80 | 140 | 300 | 470 | 720 | 900 | ||
Raw Material | 35 | 65 | 110 | 225 | 355 | 540 | 670 | |||
α=10° | Cement | 60 | 100 | 170 | 380 | 570 | 900 | 1080 | ||
Raw Material | 45 | 80 | 140 | 285 | 425 | 670 | 800 | |||
α=12° | Cement | 70 | 120 | 205 | 455 | 685 | 1080 | 1295 | ||
Raw Material | 50 | 95 | 165 | 340 | 510 | 805 | 960 | |||
Cell Body Length | Standard | mm | 2000 | |||||||
Not Standard | mm | n×250 | ||||||||
Wind Pressure Need | KPa | 4-5.5 | ||||||||
Air Permeable Layer | Air Need | Cement | m3/m2·Min | 1.5-2 | ||||||
Material | Raw Material | synthetic fiber | ||||||||
Thickness | Cement | mm | 4-6 | |||||||
Temperature Resistance | Raw Material | ℃ | 150 | |||||||
Radial fracture strength | Cement | N/cm Width | 4700 | |||||||
Resistance | Raw Material | Pa | 800-1200（under 2m3/m2·min） | |||||||

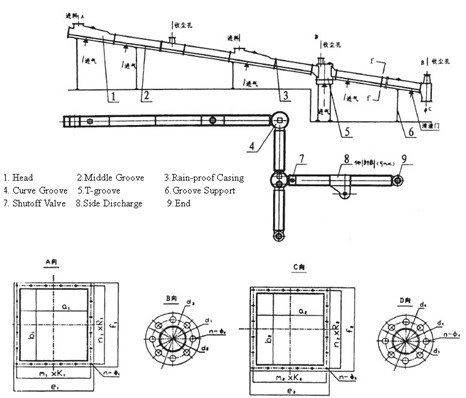

a1 | b1 | e1 | f1 | m1x R1 | n1×R1 | nxΦ1 | ||||||||
I | II | I | II | I | II | I | II | I | II | I | II | I | II | |
XZ200 | 120 | 200 | 120 | 150 | 210 | 280 | 210 | 230 | 2×86 | 4×63 | 2×86 | 3×66 | 8-Φ14.5 | 14-Φ12 |
XZ250 | 150 | 250 | 150 | 200 | 240 | 330 | 240 | 280 | 2×70 | 4×70 | 3×70 | 3×83 | 12-Φ14.5 | 14-Φ12 |
XZ315 | 150 | 250 | 150 | 250 | 240 | 330 | 240 | 330 | 3×70 | 4×75 | 3×70 | 4×75 | 12-Φ14.5 | 16-Φ12 |
XZ400 | 150 | 315 | 150 | 315 | 240 | 395 | 240 | 395 | 3×70 | 5×73 | 3×70 | 5×73 | 12-Φ14.5 | 20-Φ12 |
XZ500 | 200 | 400 | 200 | 400 | 290 | 480 | 290 | 480 | 3×88 | 6×75 | 3×88 | 6×75 | 12-Φ14.5 | 24-Φ12 |
XZ630 | 200 | 500 | 200 | 500 | 290 | 580 | 290 | 580 | 3×88 | 7×79 | 3×88 | 7×79 | 12-Φ14.5 | 28-Φ12 |
a2 | b2 | e2 | f2 | m2×R2 | N2×R2 | n×Φ3 | d1 | d2 | d3 | n×Φ2 | d4 | d5 | d6 | n×Φ4 | |
XZ200 | 206 | 206 | 286 | 286 | 3×82 | 3×82 | 14-Φ12 | 108 | 152 | 188 | 4-Φ12 | Φ130 | Φ160 | Φ190 | 6-Φ12 |
XZ250 | 256 | 256 | 336 | 336 | 4×75 | 4×75 | 16-Φ12 | 108 | 152 | 188 | 4-Φ12 | Φ135 | Φ170 | Φ205 | 6-Φ12 |
XZ315 | 321 | 321 | 401 | 401 | 5×73 | 5×73 | 20-Φ12 | 200 | 225 | 260 | 6-Φ12 | Φ190 | Φ225 | Φ260 | 8-Φ12 |
XZ400 | 406 | 406 | 486 | 486 | 6×75 | 6×75 | 24-Φ12 | 219 | 280 | 315 | 8-Φ12 | Φ245 | Φ280 | Φ340 | 8-Φ12 |
XZ500 | 506 | 506 | 586 | 586 | 7×79 | 7×79 | 28-Φ12 | 260 | 305 | 340 | 8-Φ12 | Φ270 | Φ305 | Φ340 | 8-Φ12 |
XZ630 | 638 | 638 | 738 | 738 | 8×86 | 8×86 | 32-Φ14.5 | 325 | 370 | 405 | 12-Φ12 | Φ355 | Φ395 | Φ435 | 12-Φ12 |
