HD Bag Dust Collector Bag Filter
●General Information
HD series bag dust collector is designed for dust clean of the silo's top, silo’s bottom, belt convey and the part dust source. It is also could be used for dust clean of part dust source in other industries’ series bag dust collector
The HD series bag has small volume, strong wind power, compact structure, easy to use and reliable. The dust removed from collector can exert in the silo directly and also can directly fall on the belt. The gas with dust gets into the dust collector from the bottom, after filtering by bag filter, clean air will be exerted by the induced draft fan. After the dust collector is working for a period of time, dust on the filter bag increases gradually, the resistance of the filter bag rise, need to clean ash, and after cleaning has been completed, dust collector back to normal work.
The HD series bag filter group has six size: A, B, C three type, A with ash door, B with drawer, and C neither set ash door nor drawer, the bottom flange according to user's requirements and direct matching at the top of the silo, material house. Such equipment like belt conveyor, please clean dust at the work place, and dust is reclaimed directly.
●Technical Parameters

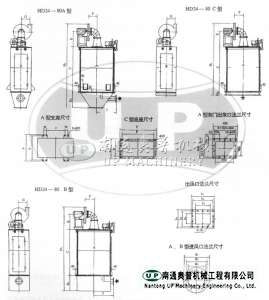

Type | HD24 | HD32 | HD48 | HD56 | HD64 | HD64L | HD80 |
Performance | A,B,C | A,B,C | A,B,C | A,B,C | A,B,C | A,B,C | A,B,C |
Working Air Quantity (m3/h) | 1000 -2000 | 1500 -2000 | 2000 -3000 | 3000 -3400 | 3480 -4200 | 4200 -5200 | 5200 -6000 |
Resistance of Dust Collector (Pa) | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 |
Filter Area (m2) | 10 | 14.48 | 20 | 25 | 26 | 35 | 40 |
Filter Speed (m/min) | ≤2.5 | ≤2.5 | ≤2.5 | ≤2.5 | ≤2.5 | ≤2.5 | ≤2.5 |
Collecting Efficiency (%) | ＞99.9 | ＞99.9 | ＞99.9 | ＞99.9 | ＞99.9 | ＞99.9 | ＞99.9 |
Blower Power (KW) | 2.2 | 3 | 5.5 | 5.5 | 7.5 | 7.5 | 11 |
Deashing Motor Power (KW) | 0.25 | 0.25 | 0.25 | 0.37 | 0.55 | 0.55 | 0.55 |
Blower Motor No. | Y90L-2 | Y100L-2 | Y132S1-2 | Y132S1-2 | Y132S1-2 | Y160M2-2 | Y160M1-2 |
Deashing Motor Power Type | Y801-4 | Y801-4 | Y801-4 | Y801-4 | Y801-4 | Y801-4 | Y801-4 |
Code | A | B | C | D1 | D2 | E | F | G | H1 | H2 | I | J | a | b | c |
Type | |||||||||||||||
HD24(A.B.C) | 830 | 640 | 1452 | 450 | 100 | 475 | 283 | 286 | 2639 | 2289 | 175 | 480 | 860 | 800 | 492 |
HD32(A.B.C) | 1080 | 640 | 1452 | 500 | 100 | 475 | 283 | 286 | 2689 | 2289 | 175 | 600 | 860 | 800 | 742 |
HD48(A.B.C) | 1080 | 900 | 1452 | 650 | 100 | 505 | 365 | 287 | 2967 | 2417 | 200 | 600 | 1120 | 1060 | 742 |
HD56(A.B.C) | 950 | 1160 | 1452 | 665 | 100 | 505 | 365 | 287 | 2982 | 2417 | 200 | 520 | 1380 | 1320 | 612 |
HD64(A.B.C) | 1080 | 1160 | 1452 | 670 | 100 | 505 | 365 | 287 | 2987 | 2417 | 200 | 600 | 1380 | 1320 | 742 |
HD64L(A.B.C) | 1080 | 1160 | 1723 | 670 | 100 | 555 | 400 | 322 | 3353 | 2783 | 200 | 600 | 1380 | 1320 | 742 |
HD80(A.B.C) | 1340 | 1160 | 1723 | 840 | 100 | 555 | 400 | 322 | 3523 | 2783 | 200 | 720 | 1380 | 1320 | 1002 |
Code | d | e | f | g | h1 | h2 | h3 | h4 | h5 | h6 | n1-d1 | Φ1 | Φ2 | Φ3 | n2-d2 |
Type | |||||||||||||||
HD24(A.B.C) | 640 | 544 | 910 | 814 | 182 | 160 | 128 | 148 | 126 | 92 | 14-Φ7 | Φ210 | Φ180 | Φ150 | 6-Φ10 |
HD32(A.B.C) | 640 | 544 | 1160 | 1064 | 182 | 160 | 128 | 148 | 126 | 92 | 14-Φ7 | Φ210 | Φ180 | Φ150 | 6-Φ10 |
HD48(A.B.C) | 900 | 804 | 1160 | 1064 | 250 | 228 | 196 | 184 | 165 | 128 | 14-Φ7 | Φ260 | Φ230 | Φ200 | 8-Φ10 |
HD56(A.B.C) | 1030 | 934 | 1160 | 1064 | 250 | 228 | 196 | 184 | 165 | 128 | 14-Φ7 | Φ330 | Φ300 | Φ250 | 8-Φ10 |
HD64(A.B.C) | 1160 | 1064 | 1160 | 1064 | 250 | 228 | 196 | 184 | 165 | 128 | 14-Φ7 | Φ330 | Φ300 | Φ250 | 8-Φ10 |
HD64L(A.B.C) | 1160 | 1064 | 1160 | 1064 | 275 | 252 | 221 | 200 | 177 | 144 | 14-Φ7 | Φ330 | Φ300 | Φ250 | 8-Φ10 |
HD80(A.B.C) | 1160 | 1064 | 1420 | 1324 | 275 | 252 | 221 | 200 | 177 | 144 | 14-Φ7 | Φ330 | Φ300 | Φ250 | 8-Φ10 |
