Screw feeder consists of body, star rotor, end cap, etc. The material falls among vanes which in the body from the upper inlet .The vanes are driven by the motor rotating at constant speed and convey the materials to the material outlet and feeding or discharging. According to the form of the installation, screw feeder could be use as the discharge device for the positive pressure conveying system or negative pressure suction conveying system or as the feeder for the positive pressure conveying system feeder. Each system has the effect of closing system to prevent air leakage and feeding at the same time.

①Bulk Material（Powdery or particle）

②Feeder Body

③Star Rotor

1. It adopts Germany, Italian, and Japanese advanced technology in one which is high technology content.

2. It adopts the double lip oil sealing, and special seal material structure ensures reliable sealing.

3. It chooses high-accuracy bearings ensure the reliable working and constant gap.

4. The key parts produced by machining center which ensure the high accuracy, long life, little gap, low leakage quantity.

5. There is equal pressure suction air inlet in the side of the body which could take the high pressure from the vanes during the rotary, which will decrease the gas lifter phenomena and good for the material supply.

6. It is suitable for the bulk conveying under high pressure, high temperature, complicated property and diversity medium.

7. It has the characteristics of accuracy convey, quickly discharge and different convey quantity to choose.

XGD-F means foundation type square flanges connection

XGD-Y means foundation type circular flanges connection

XGT-F means whole type square flanges connection

XGT-Y means whole type circular flanges connection

XGZ-F means direct connect type square flanges connection

XGN-F means whole wear-resistant square flanges connection

XGN-Y means whole wear-resistant circular flanges connection

150, 200, 250, 300, 400, 500, 600, 700, 800, 1 000

This series’ diameters have difference between different types

D type: It has open end leaves which is suitable for powdery material

B type: It has closed end leaves which is suitable for particle and ball material.

1. Powdery type: upside material inlet and downside material outlet, the 1.0MPa national standard circular flanges. It is suitable for powdery material conveying.

2. Particle type: upside material inlet and downside material outlet, the 1.0MPa national standard circular flanges. And V-shape structure set in the inlet. It is suitable for the particle and elasticity particle conveying.

3. Wear-resistant type: There are compensable vanes or wear-resistant panel, and add wear-resistant bush and other structure. Reduce the wear resistant and increase the service life.

4. Drip pressure type: The end uses special seal structure. The gap between the impeller and the shell is very small. The leakage inside is very small and suitable for the high pressure work situation. And it could be used as the replacement of the transmitter feeder, and it can provide plug continuously and realize the high pressure dense phase plug flow conveying.

1. This series product appoint the carbon steel, low pressure (<0.2Mpa), low temperature(<150℃) as the standard type.

2. Please choose the suitable type and note it according the install form and the feeding and discharging situation.

3. Please choose the rotor form base on the property of the conveying material.

4. Please choose suitable type base on the conveying quantity.

5. We could provide equipment which could afford special material, high temperature, high pressure.

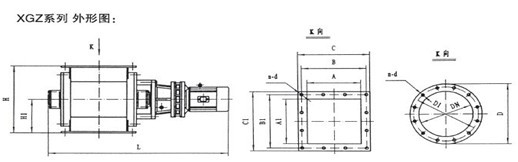

XG-F External Connection Dimension
