Aeration Butterfly Valve FD341W-0.5C Manual Aerati

Aeration Butterfly Valve FD341W-0.5C Manual Aeration Butterfly Valve



General Information

This manual double-clip aeration butterfly valve is widely used for aerating in the pipe system and environment protection of building material, glass, mining, electric power, light industry, etc. The gas medium in the pipe is adjusted the flow and cut off by the different control signal.
Structural Characteristics
This manual double-clip aeration butterfly valve adopts high quality carbon steel welding. It has the characteristics of light weight, compact structure, small flow resistance loss, flexible operation, indicates a clear orientation, convenient maintenance, long service life, etc. It can be installed as your wish, especially suitable for overhead pipelines. With turbo transmission device switch, switch easily, adjusted valve opening, is an ideal equipment to control flow.
Technical Parameters


Nominal Pressure
Medium Flow Speed
Leakage Rate
Temperature
Medium
0.05MPa
≤25m/s
≤1%
≤300℃
Air, smoking, fly ash, etc.


Type Instruction

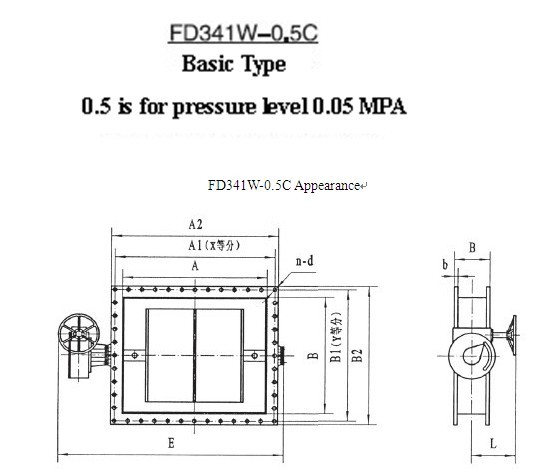

FD341W-0.5C External Connection Dimension


A×B
A1×B1
A2×B2
B
b
n-d
X
Y
E
L
200×200
245×245
280×280
180
8
8-Φ12
2
2
745
180
250×250
305×305
350×350
180
8
12-Φ12
3
3
795
180
320×250
375×305
420×350
180
8
12-Φ12
3
3
885
180
320×320
375×375
420×420
180
8
12-Φ12
3
3
885
180
400×320
455×375
500×420
180
8
14-Φ14
4
3
1015
180
400×400
455×455
500×500
200
10
16-Φ14
4
4
1015
180
500×320
555×375
600×420
200
10
16-Φ14
5
3
1115
180
500×400
555×455
600×500
200
10
18-Φ14
5
4
1115
180
500×500
555×555
600×600
200
10
20-Φ14
5
5
1115
180
630×320
685×375
730×420
200
10
18-Φ14
6
3
1115
180
630×400
685×455
730×500
200
10
20-Φ14
6
4
1115
180
630×500
685×555
730×600
200
10
22-Φ14
6
5
1115
180
630×630
685×685
730×730
220
10
24-Φ14
6
6
1115
250
aOO×400
855×455
900×500
220
10
22-Φ14
7
5
1535
250
800×500
855×555
900×600
220
10
24-Φ14
7
5
1535
250
800×630
B55×685
900×730
220
10
26-Φ14
7
6
1535
250
800×800
855×855
900×900
220
10
28-Φ14
7
7
1535
250
1000×400
1070×470
1130×530
220
12
22-Φ18
8
3
1675
250
1000×500
1070×570
1130×630
220
12
24-Φ18
8
4
1675
250
1000×630
1070×700
1130×760
220
12
26-Φ18
8
5
1675
250
1000×800
1070×870
1130×930
260
12
28-Φ18
8
6
1675
300
1000×l000
1070×1070
1130×1130
260
12
32-Φ18
8
8
1675
300
1250×400
1320×470
1380×530
260
12
26-Φ18
10
3
1975
300
1250×500
1320×570
1380×630
260
12
28-Φ18
10
4
1975
300
1250×630
1320×70
1380×760
260
12
30-Φ18
10
5
1975
300
1250×800
1320×870
1380×930
260
12
32-Φ18
10
6
1975
300
1250×1000
1320×1070
1380×1130
300
12
36-Φ22
10
8
1975
300
1600×630
1670×70
1730×760
300
12
36-Φ22
13
5
2295
300
1600×800
1670×870
1730×930
300
12
38-Φ22
13
6
2295
350
1600×1250
1670×1320
1730×1380
340
12
46-Φ22
13
10
2295
350
2000×800
2070×870
2130×930
340
16
42-Φ22
15
6
3005
350
2000×1000
2070×1070
2130×1130
340
16
46-Φ22
15
8
3005
350
