●General Information
The angle Automatic Control Butterfly Valve is widely used for aerating in the pipe system and environment protection of building material, glass, mining, electric power, light industry, etc. The gas medium in the pipe is adjusted the flow and cut off by the different control signal.
●Structural Characteristics
The angle Automatic Control Butterfly Valve adopts high quality carbon steel welding. It could be installed vertically or flatly. The equipped with the DKJ, ZKJ and Bernard type actuator and other accessories. It could switch between manual and automatic without disturb. And it could long distance control, automatic control and central control. It is the perfect equipment for automatic control operation and flow control.
●Technical Parameters
Nominal pressure | Medium Flow Speed | Leakage Rate | Temperature | Medium | |
0.05MPa | ≤25m/s | ≤1% | C | Mn | Air, smoking, fly ash, etc. |
≤300℃ | |||||

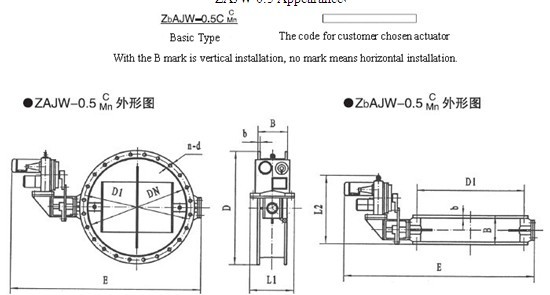

ZAJW-0.5 Appearance
DN | D | D1 | B | b | n-d | E | L1 | L2 | Actuate Parameters | W（Kg) |
100 | 180 | 145 | 180 | 8 | 4-Φ12 | 855 | 450 | 620 | DKJ-210 T:100N . m P:0.025KW | 65 |
150 | 230 | 195 | 180 | 8 | 8-Φ12 | 905 | 450 | 620 | 73 | |
200 | 280 | 245 | 180 | 8 | 8-Φ12 | 965 | 450 | 620 | 81 | |
250 | 350 | 305 | 180 | 8 | 12-Φ12 | 1015 | 450 | 620 | 84 | |
300 | 400 | 355 | 180 | 8 | 12-Φ12 | 1085 | 450 | 620 | 92 | |
350 | 450 | 405 | 180 | 8 | 12-Φ12 | 1135 | 450 | 620 | 95 | |
400 | 500 | 455 | 200 | 10 | 16-Φ14 | 1385 | 500 | 650 | DKJ-310 T:250N·m P:0.065KW | 169 |
450 | 550 | 505 | 200 | 10 | 16-Φ14 | 1440 | 500 | 650 | 201 | |
500 | 600 | 555 | 200 | 10 | 20-Φ14 | 1486 | 500 | 650 | 221 | |
600 | 700 | 655 | 200 | 10 | 20-Φ14 | 1596 | 500 | 650 | 292 | |
700 | 800 | 755 | 220 | 10 | 20-Φ14 | 1780 | 600 | 700 | DKJ-410 T:600N·m P:0.16KW | 402 |
800 | 900 | 855 | 220 | 10 | 24-Φ14 | 1895 | 600 | 700 | 49 | |
900 | 1000 | 955 | 220 | 10 | 24-Φ14 | 1995 | 600 | 700 | 463 | |
1000 | 1130 | 1070 | 260 | 12 | 28-Φ18 | 2225 | 620 | 780 | DKJ-510 T:1600N·m P:0.4KW | 579 |
1100 | 1230 | 1170 | 260 | 12 | 28-Φ18 | 2355 | 620 | 780 | 666 | |
1200 | 1330 | 1270 | 260 | 12 | 28-Φ18 | 2455 | 620 | 780 | 719 | |
1300 | 1430 | 1370 | 300 | 12 | 32-Φ18 | 2555 | 620 | 820 | 738 | |
1400 | 1530 | 1470 | 300 | 12 | 36-Φ18 | 2655 | 620 | 820 | 781 | |
1500 | 1630 | 1570 | 300 | 12 | 36-Φ18 | 2770 | 620 | 820 | 857 | |
1600 | 1730 | 1670 | 300 | 12 | 40-Φ18 | 2870 | 620 | 820 | 985 | |
1700 | 1830 | 1770 | 340 | 16 | 40-Φ18 | 3110 | 650 | 900 | DFCI-610A T:2500N·m P:0.65KW | 1007 |
1800 | 1930 | 1870 | 340 | 16 | 44-Φ18 | 3210 | 650 | 900 | 1413 | |
1900 | 2030 | 1970 | 340 | 16 | 44-Φ18 | 3310 | 650 | 900 | 1468 | |
2000 | 2130 | 2070 | 340 | 16 | 48-Φ22 | 3410 | 650 | 900 | 1520 | |
2100 | 2230 | 2170 | 340 | 16 | 48-Φ22 | 3525 | 650 | 900 | 1575 | |
2200 | 2330 | 2270 | 340 | 16 | 48-Φ22 | 3625 | 650 | 900 | 1632 | |
2300 | 2430 | 2370 | 380 | 16 | 48-Φ22 | 3805 | 650 | 1000 | DKJ-610 T:4000N·m P:1.0KW | 2149 |
2400 | 2530 | 2470 | 380 | 16 | 48-Φ22 | 3905 | 650 | 1000 | 2247 | |
2500 | 2630 | 2570 | 380 | 16 | 52-Φ22 | 4005 | 650 | 1000 | 2355 | |
2600 | 2730 | 2670 | 380 | 16 | 52-Φ22 | 4105 | 650 | 1000 | 2473 | |
2700 | 2830 | 2770 | 420 | 20 | 56-Φ22 | 4210 | 750 | 1350 | DKJ-710 T:6000N·m P:1.5KW | 3406 |
2800 | 2930 | 2870 | 420 | 20 | 60-Φ22 | 4310 | 750 | 1350 | 3489 | |
2900 | 3030 | 2970 | 420 | 20 | 60-Φ22 | 4410 | 750 | 1350 | 3582 | |
3000 | 3130 | 3070 | 420 | 20 | 60-Φ22 | 4510 | 750 | 1350 | 3662 |
