Electric Butterfly Valve ZAJW-6C/Mn Electric Butte

Electric Butterfly Valve ZAJW-6C/Mn Electric Butterfly Valve




General Information
The Electric Control Butterfly Valve is widely used for aerating in the pipe system and environment protection of building material, glass, mining, electric power, light industry, etc. The gas medium in the pipe is adjusted the flow and cut off by the different control signal.
Structural Characteristics
The Electric Control Butterfly Valve adopts high quality carbon steel welding. It could be installed vertically or flatly. The equipped with the DKJ, ZKJ and Bernard type actuator and other accessories. It could switch between manual and automatic without disturb. And it could long distance control, automatic control and central control. It is the perfect equipment for automatic control operation and flow control.
Technical Parameters


Nominal pressure
Medium Flow Speed
Leakage Rate
Temperature
Medium
0.05MPa
≤25m/s
≤1%
C
Mn
Air, smoking, fly ash, etc.
≤300℃

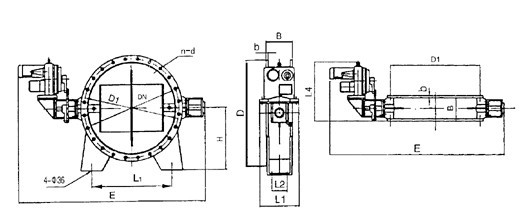

ZAJW-6Mn External Connection Dimension


DN
D
D1
B
b
N - d
E
H
100
210
170
180
12
4 -Φ18
855
No foot support
150
265
225
8 -Φ18
905
200
320
280
980
250
375
335
12 - Φ
1030
300
440
395
220
14
12 - Φ22
1080
350
490
445
1130
400
540
495
16 - Φ22
1204
450
595
550
1254
500
645
600
20 - Φ
1340
550
705
655
20 - Φ26
1509
600
755
705
1609
650
810
760
240
18
1675
700
860
810
24 - Φ
1817
800
975
920
24 - Φ30
1917
900
1075
1020
2077
1000
1175
1120
26
28 - Φ30
2177
1100
1275
1220
280
2277
690
1200
1375
1320
32 - Φ30
2377
740
1250
1425
1370
2530
765
1300
1475
1420
320
2615
790
1400
1575
1520
36 - Φ30
2715
840
1500
1690
1630
26
2865
925
1600
1790
1730
40-Φ
2965
975
1700
1890
1830
360
44 - Φ30
3065
1025
1800
1990
1930
3165
1075
1900
2090
2030
30
48 - Φ30
3285
1125
2000
2190
2130
3385
1175
2100
2305
2240
52 - Φ33
3485
1237
2200
2405
2340
3585
1287
2300
2505
2440
440
34
56 - Φ33
3685
1337
2400
2605
2540
3785
1387
2500
2705
2640
60 - Φ33
3895
1437
2600
2805
2740
3995
1487
2700
2930
2860
440
38
64 - Φ36
4155
1550
2800
3030
2960
4255
1600
2900
3130
3060
68 - Φ36
4355
1650
3000
3230
3160
4455
1700
