Shutter Gate TJQB-0.5C Shutter Pneumatic Air Ctrl

Louver Valve TJQB-0.5C Shutter Pneumatic Air Controller (Circular)




General Information
The shutter type pneumatic airflow control valve is new type energy-saving effective and reliable airflow control equipment. It is suitable for the inlet and aeration pipe of blowers in the metallurgy, mining, coal, building materials, chemical, electric power, etc. It controls the airflow in the pipes.
The shutter type pneumatic airflow control valve is novel design, reasonable structure, light weight and adopts multiple spindle shutter, the equal fluid. And the start and stop moment of force is small, flexible action. It can control the perfect airflow for the net pipe system.
Technical Parameters


Nominal Pressure
Medium Flow Speed
Leakage Rate
Temperature
Medium
0.05MPa
≤25m/s
≤1.5%
-20 ℃~300 ℃
Air, Fly ash

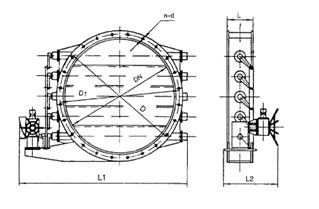

TJQB-0.5C Pneumatic External Connection Dimension


DN
D
D1
L
L1
L2
b
n-d
Pneumatic Device
Blower
Weight(kg)






280
324
306
160
820
330
8
8-Φ10
QZ15
4-72
125






320
367
350
180
860
340
16-Φ7
135






360
416
394
900
155






450
512
490
930
370
16-Φ10
QZ25
200






500
572
550
200
980
380
232






600
676
650
1235
287






180
230
205
160
715
330
8-Φ7
QZ15
9-19
9-26
100






200
250
225
735
106






224
284
254
755
117






250
310
280
781
8-Φ10
9-19
9-27
125






280
360
320
801
187






315
395
355
180
840
340
168






355
435
395
880
192






400
500
450
885
370
8-Φ12
QZ25
212






450
550
500
925
247






500
620
560
200
975
380
12-Φ12
280






560
680
620
1035
10
302
630
750
690
1265
327
710
830
770
1345
420
16-Φ12
QZ85
372



800
920
860
260
1362
450
9-26
428

900
1040
970
1462
16-Φ15
477




1000
1110
1065
1640
4-27
Y5-48
525






1110
1220
1170
1740
12
20-Φ15
572






1120
1250
1190
280
1760
485
QZ150
622






1200
1330
1270
1840
24-Φ15
G/Y-72
702






1400
1520
1470
320
2040
505
852






1600
1700
1660
2240
28-Φ19
992






1800
1900
1860
420
2448
840
14
QZ400
1217






2000
2122
2060
2648
1557






2200
2300
2260
450
2848
855
36-Φ19
G/Y-73-13
1980






2500
2600
2560
3148
2400






2800
2900
2860
500
3448
880
QZ500
297
