LZ Series Screw Gate Valve

LZ Series Screw Gate Valve






General Information
LZ Series Screw gate is main equipment in controlling the flow of the powder and particle material. It is widely used at the top, bottom and the inlet and outlet of silos in metallurgy, mining, building materials, grain, chemical, etc. It is the perfect equipment for requirements of control flow, start and shut off frequency and cut off quickly.
Structure Characteristics
The gate has characteristics of simple structure, easy operation, light weight, no jam, cut off quickly, especially suitable for conveying and flow adjusting of different powdery material and particle material and crystal material under φ5mm. Installation angle are no limited. Easy operation and the gatage is adjustable at any time.

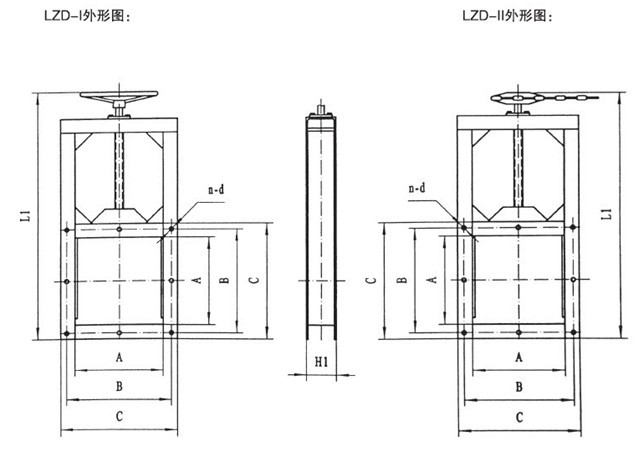

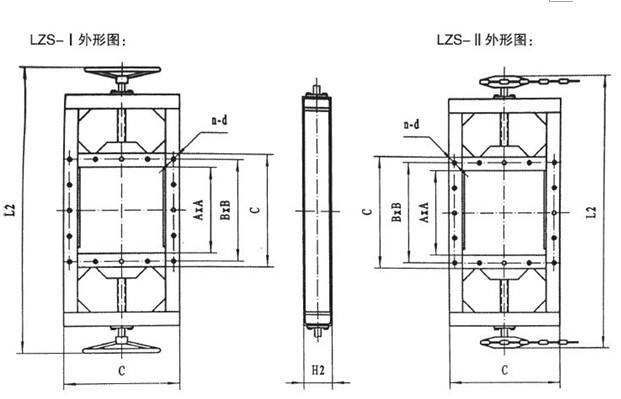

LZ Series External Connection Dimension
A×A1
B×B1
C×C1
L1
L2
H
H2
n-d
200×200
256×256
296×296
820

100

8-Φ10
250×250
306×306
346×346
930

100

8-Φ10
300×300
356×356
396×396
1050

100

8-Φ12
400×400
456×456
496×496
1250

100

12-Φ12
450×450
510×510
556×556
1350

120

12-Φ14
490×490
550×550
596×596
1440

120

16-Φ14
500×500
560×560
606×606
1500

120

16-Φ16
600×600
660×660
706×706
1710
2010
120
120
16-Φ16
700×700
770×770
820×820
1940
2130
140
140
20-Φ18
800×800
870×870
920×920
2140
2240
140
140
20-Φ18
900×900
974×974
1030×1030
2410
2660
160
160
24-Φ18
1000×1000
1074×1074
1130×1130
2610
2870
160
160
24-Φ18
1100×1100
1180×1180
1240×1240
2810
3120
160
180
28-Φ18
1200×1200
1280×1280
1340×1340
3010
3310
160
180
32-Φ18
Instructions
This valve could be installed vertically or flatly, please add the gasket between the flanges when installing and then tighten the bolt.
When operating the hand wheel, the clockwise is turn off, the opposite side is turn on. No more auxiliary lever should be added.
If it is long-term storage, the equipment should shut off, and there should add lubricate oil in the transmission device. And not allow to store or pile up in the open-air.
