DLVD s-0.1 Electric One-way Plate Gate Valve, Elec

DLVD s-0.1 Electric One-way Plate Gate Valve, Electric Two-way Plate Gate Valve




●General Information
The electric One-way plate gate valve, manual double-way plate gate valve is widely used in the pipe for material flow controlling in the building materials, metallurgy, mine, etc. It is the perfect powdery material flow control equipment.
The electric one-way plate gate valve widely consists of frame, feed screw nut, gate plate, motor-driven head, etc. The rotation of the motor drives the lead screw and the feed screw nut and the plate gate do the reciprocating motion on the horizontal direction. It could make the gate valve open and close.
Technical Parameters


Nominal Pressure
0.6
Temperature(℃)
≤150
Medium
Powdery Material

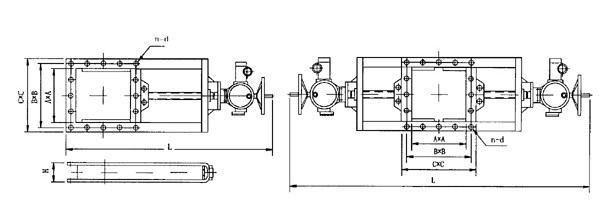

Appearance and Installation Size


Type
A×A
B×B
C×C
L
H
n-d
Weight (kg)
One-way
200×200
256×256
306×306
920
120
8-Φ14
130
250×250
306×306
346×346
1050
120
8-Φ14
150
300×300
356×356
396×396
1260
120
8-Φ14
180
400×400
456×456
496×496
1560
140
12-Φ14
200
450×450
510×510
556×556
1670
140
12-Φ14
230
500×500
560×560
606×606
1890
140
16-Φ18
270
Two-way
600×600
660×660
706×706
1830
160
16-Φ18
350
700×700
770×770
820×820
2520
160
20-Φ18
390
800×800
870×870
920×920
2750
180
20-Φ18
460
900×900
974×974
1030×1030
2950
180
24-Φ23
490
1000×1000
1074×1074
1130×1130
3110
180
24-Φ23
555
