●General Information
Pneumatic Switch Valve is mainly used as the switch in the powdery material flow control system. The pneumatic switch valve uses the cylinder as the power to realize the switch function

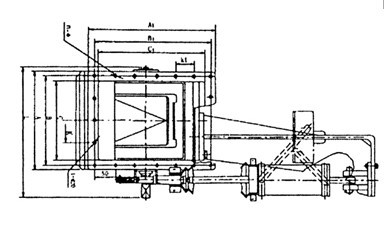

Type Project Part | Unit | B250 | B300 | B400 | |
Valve Body | Flow | m3/h | 120 | 160 | 220 |
Flow Rate | m/s | 3 | 3 | 3 | |
Corner θ | Deg | 71 | 71 | 71 | |
Outer Diameter | mm | 260 | 280 | 320 | |
Length | mm | 330 | 405 | 410 | |
Flow Area | m2 | 0.0148 | 0.025 | 0.0425 | |
Cylinder | Type | QGBII-100 | QGBII-100 | QGBII-100 | |
Inner Diameter | mm | 100 | 100 | 100 | |
Cylinder Stroke | mm | 200 | 200 | 200 | |
Working Pressure | MPa | 0.15-1 | 0.15-1 | 0.15-1 | |
Installation | Double Ears | Double Ears | Double Ears | ||
Air Permeable Layer | Material | PETS-6 | PETS-6 | PETS-6 | |
Flow Area | m2 | 0.05 | 0.07 | 0.09 | |
Air Consumption | m3/min | 0.5 | 0.5 | 0.5 | |
