Summary

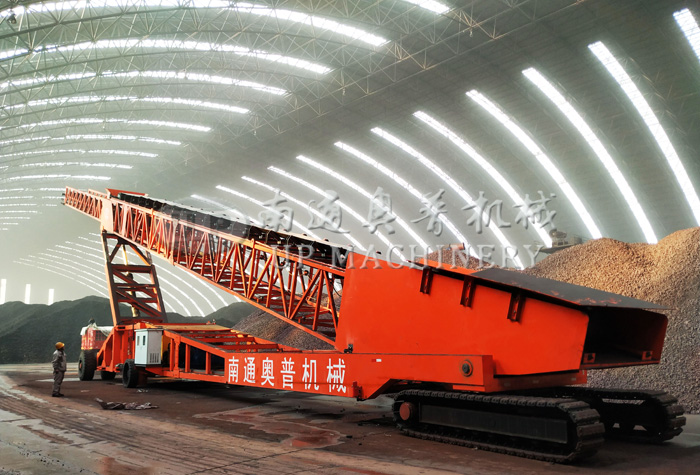

The mobile stacker is one of the most cost efficient and effective way of stockpiling material on the market. The reduction of segregation, degradation, contamination and compaction when stockpiling ensures 'in specification' material for any application. The mobile stackers cater for a complete range of applications and industries.
Mobile stacker equipped with apron wheel system which adapt to various complex operation conditions. Radial telescopic, rotary characteristics ensure the device has large stacking range on fixed point, and reduce mobile frequency. The hydraulic luffing device ensures the reliability of the beam pitching during stacking operation, and also effectively reduce the dust pollution in stacking process.
Features & advantages
l Flexible telescopic and radial rotation characteristics ensure the efficiency of stacking work
l 30%more stockpile capacity on same footprint as traditional stakers
l Maximum working capacity up to 3000TPH
l Lower investment costs;
Configuration option
l Automatic PLC control system, radio remote control operation independent steering of all wheels
l Dual power(diesel motor/Shore)system
l Dust extraction/suppression options: fully sealed feed-in, transfer and discharge points, canvas dust cover, telescopic chute device, water spray device, etc;
Specification
Working capacity(TPH) | 1000
| 1200
| 1500
| 3000
|
Rotation radius (m) | 16
| 16
| 18
| 20
|
Max length(m) | 35
| 35
| 42
| 50
|
Feeding height (m) | 2. 8
| 3. 0
| 3. 5
| 3. 5
|
